Forward Deployed Engineering Interview

Chapter 1 · The role and the loop

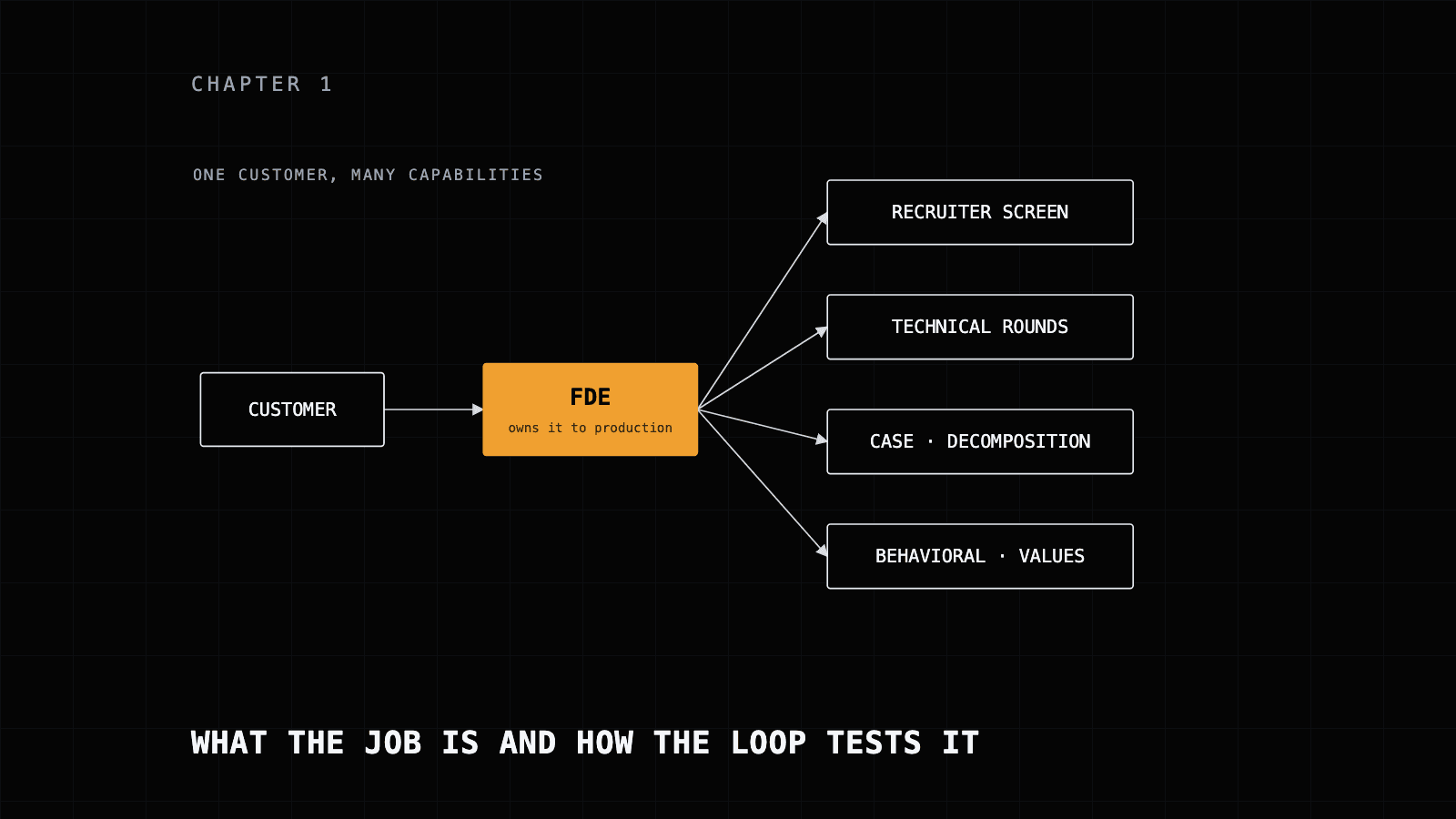

What the Job Is and How the Loop Tests It

What forward deployed engineers own in 2026?

Between May 4 and July 2, 2026, forward deployed engineering became a line of business. OpenAI launched a deployment company with “more than $4 billion of initial investment”; AWS put $1 billion behind an FDE organization; Microsoft committed $2.5 billion and 6,000 people; and Anthropic's new services company was valued at $1.5 billion, according to the WSJ as reported by TechCrunch. Forrester puts the total at roughly $9 billion, as Business Insider reported.

The job began as Palantir's internal name for an engineer who serves “one customer, many capabilities”, and its interview changed as fast as the money. Meta now expects candidates to use an AI assistant built into the interview, Sierra replaced its coding rounds with a two-hour build using any AI tools, and Anthropic forbids AI in live interviews unless told otherwise.

This book is for engineers preparing for forward deployed engineer (FDE), applied AI, GenAI and AI architect interviews, and for engineers in those jobs who want sharper perspectives. It assumes you write Python and have shipped something that calls a model API. The chapters that need inference servers, security reviews or executive briefings build them up from the mechanism.

Its spine is a list of 33 questions. Each one gets a card that says what the interviewer is testing, a model answer you could say in two to three minutes, the engineering underneath (sourced numbers, runnable code, figures you can drag or step through), follow-ups to try before you open the answers, and the red flags that sink an answer.

Sources carry labels. Company pages, postings, filings, papers and first-hand accounts we read are stated as fact, with a link; news reports are attributed by name; a candidate's post is one person's account; claims found only in search summaries are left out or named as unconfirmed. Postings, pay and counts are snapshots from October 7, 2026, and the market section includes a script that refreshes them.

With a loop two weeks away, read this chapter, find your rounds on the competency map near its end, read those chapters, and say the model answers aloud against a timer. With six weeks, follow the plan in the appendix. If you already do the job, go straight to the depth sections and the follow-ups.

On April 8, 2019, Palantir's blog published “Dev versus Delta: Demystifying engineering roles at Palantir”. Software Engineers and Forward Deployed Software Engineers (FDSEs) were its “biggest engineering roles by headcount”, called Devs and Deltas internally; Delta was “a throwback to our early days, when each team in Business Development was named after a letter in the NATO alphabet.” A Dev's focus is “one capability, many customers”, a Delta's is “one customer, many capabilities”, and Palantir's careers page for students uses the same phrases today.

Deltas “measure success in terms of impact on the customer's goal”, and the core skill the post names is “Technical decomp”, breaking a high-level problem down to “the lines of code you need to solve it”. Deltas also contribute code to the core product, validate larger feature requests against the product roadmap, and move between the two roles.

Switch between DEV and DELTA, then pick FEEDBACK to see the path that joins the two loops. Hover over or tab to any box to read what Palantir and its former engineers say happens there.

Palantir's 2020 S-1 put that path into a filing (“Our FDEs are our first line in identifying research and development opportunities for our platforms”) and showed the economics. Its sales model “often requires us to spend months and invest significant resources working with customers on pilot deployments at no or low cost to them”, and “Custom code and consulting teams” are “unsustainable alternatives”. In that model FDE time is an investment in adoption, and the platform keeps it from becoming a consulting business. Most 2026 criticism of the role asks whether a given employer still has the platform half.

Palantir still files roles under the old names: on October 7, 2026 its public Lever board listed 85 postings on the Dev team, 67 on Delta and 33 on Echo, its deployment strategists. The New York FDSE posting calls itself “The Original Forward Deployed Software Engineer”, asks for one year of post-college experience and “travel up to 25%”, pays $135,000–$200,000, and promises “increasing your pain threshold to deliver real value”. When the title began is disputed (a16z says 2011, Wikipedia cites a 2009 Science article), so the timeline starts from the 2019 post.

Nabeel Qureshi, who joined Palantir in 2015 when it had about 1,500 employees, left a detailed first-hand account. FDEs “were typically expected to ‘go onsite’ to the customer's offices and work from there 3-4 days per week”, and he spent a year in Toulouse on Airbus. On pilots he wrote: “you'd have a company buying an 8-12 week pilot, and we'd spend all 8-12 weeks just getting data access, and the final week scrambling to have something to demo.” Palantir's fix was product: role-based access controls, row-level policies, security markings and audit trails built into the data layer.

When access takes the whole pilot, the demo gets one week in eight to twelve, so treat data access as a day-zero dependency with an owner and a date (Chapter 13 builds it into a 90-day plan). Palantir solved that problem once, in the platform, which is the judgment behind the next question.

Market numbers come up in “why FDE, why now” answers, and the ones in circulation mix index values with counts and stocks with flows. Cite each dataset with its definition:

• Lightcast, US postings appearing over a period (a flow): “from approximately 200 in 2024 to around 1,200 in 2025 - a sixfold increase”, and “More than 5,200 postings appeared in the first seven months of 2026 alone.”
• Bloomberry, title matches on about 1,000 postings in Revealera data: up 1,165% from January–October 2024 to January–October 2025, or 12.65 times. It differs from Lightcast's sixfold on title rules, geography and deduplication.
• Indeed, via Business Insider, an index with January 2025 set to 100: 643 in April 2025 and 5,330 in April 2026. Business Insider corrected its story (“The figures cited are indexed values relative to a January 2025 baseline”), but summaries still quote 5,330 as a count of jobs.
• Plank's census, postings live on one day (a stock): 1,333 FDE postings at 565 companies on September 12, 2026, 388 of them (29.1%) with pay. Plank sells FDE services; its raw data is public under CC BY 4.0.

More than 5,200 postings in seven months is at least 743 a month, 7.4 times the 2025 rate, and at that pace 2026 would close near 8,900; that is our extrapolation, not a Lightcast forecast. For a growth rate with a fair denominator, Alexey Grigorev's builtin.com scrapes show FDE-titled listings rising 4.2 times between February 4 and July 22, 2026, against 2.3 times for all AI-engineering listings.

The capital is easier to pin down, because the companies announced it.

The figure opens on the last announcement. Press NEXT to start from December 2025 and watch the bar add the four FDE vehicles; dashed entries are press-reported figures, or amounts that may not be new money.

OpenAI's Deployment Company is “majority-owned and controlled by OpenAI” with “more than $4 billion of initial investment”, and its Tomoro acquisition brings “approximately 150 experienced Forward Deployed Engineers and Deployment Specialists”. AWS is “backed by a $1 billion investment”, and Microsoft's Frontier Company is “a $2.5B investment ... embedding 6,000 industry and engineering experts at customers”. Anthropic's services company, named Ode with Anthropic in July, gives no figure: the $1.5 billion is the WSJ's, via TechCrunch, and may be a valuation rather than capital. And GeekWire reports that Microsoft would not say whether its $2.5 billion is new money. The four sum to $9.0 billion, which matches Forrester's estimate.

On pay, our recomputation of Plank's data gives a median posted base midpoint of $192,500 across the 388 postings with pay: $242,500 at frontier labs (16 postings) and $150,000 at seed-stage or stealth companies (30). Bloomberry's 2025 median was $173,816, and crowd-sourced Levels.fyi data, stock included, puts Palantir's US FDE median at $255,000 across 227 submissions. Supply is short: Patrick Kellenberger of Betts Recruiting told the WSJ, as Pragmatic Engineer reported, that “only maybe 10% of the market” wants the role.

To refresh these numbers before an interview, query the boards. Ashby, Greenhouse and Lever serve public job-board APIs, and fde_postings.py counts FDE-titled and wider FDE-family titles with the title rules behind this chapter's counts.

"""Count FDE-titled and FDE-family postings on public job boards.

Python 3.11+ and requests. The boards and title rules are the ones behind
the counts in Chapter 1 (read 2026-10-07); boards change daily.
"""
import re

import requests

FDE_TITLED = re.compile(r"forward[- ]deployed|deployed engineer", re.I)
FDE_FAMILY = re.compile(
    r"deployment (lead|strategist|engineer|specialist)"
    r"|agent (deployment|product manager|pm|development)"
    r"|software engineer, agent"
    r"|applied ai (engineer|architect|strategist)"
    r"|technical deployment",
    re.I,
)

BOARDS = [  # (company, ATS, board slug)
    ("OpenAI", "ashby", "openai"),
    ("Sierra", "ashby", "sierra"),
    ("Cohere", "ashby", "cohere"),
    ("Anthropic", "greenhouse", "anthropic"),
    ("Databricks", "greenhouse", "databricks"),
    ("Scale AI", "greenhouse", "scaleai"),
    ("Palantir", "lever", "palantir"),
]


def titles(ats: str, slug: str) -> list[str]:
    """Every live posting title on one public board."""
    if ats == "ashby":  # {"apiVersion": ..., "jobs": [{"title": ...}, ...]}
        url = f"https://api.ashbyhq.com/posting-api/job-board/{slug}"
        return [job["title"] for job in requests.get(url, timeout=30).json()["jobs"]]
    if ats == "greenhouse":  # {"jobs": [{"title": ...}, ...], "meta": {...}}
        url = f"https://boards-api.greenhouse.io/v1/boards/{slug}/jobs"
        return [job["title"] for job in requests.get(url, timeout=30).json()["jobs"]]
    if ats == "lever":  # a JSON array of postings; the title is "text"
        url = f"https://api.lever.co/v0/postings/{slug}?mode=json"
        return [post["text"] for post in requests.get(url, timeout=30).json()]
    raise ValueError(f"unknown ATS: {ats}")


def kind(title: str) -> str:
    if FDE_TITLED.search(title):
        return "titled"
    return "family" if FDE_FAMILY.search(title) else "other"


if __name__ == "__main__":
    print(f"{'company':<12}{'total':>7}{'titled':>8}{'family':>8}{'share':>8}")
    for company, ats, slug in BOARDS:
        kinds = [kind(t) for t in titles(ats, slug)]
        titled = kinds.count("titled")
        family = titled + kinds.count("family")  # the family includes titled roles
        share = titled / max(len(kinds), 1)
        print(f"{company:<12}{len(kinds):>7}{titled:>8}{family:>8}{share:>8.1%}")

On October 7, 2026 those rules gave Databricks 99 FDE-titled postings of 888, Palantir 80 of 314, OpenAI 26 of 823 (102 in the family), Anthropic 6 of 639 (57 in the family) and Sierra none of 197 by title but 69 in the family, since Sierra calls the role Software Engineer, Agent. The pay medians come from Plank's JSON:

"""Median posted base pay in Plank's FDE census (CC BY 4.0).

Python 3.11+ and requests.
Usage: python plank_median.py [field] [region], for example
       python plank_median.py segment "United States"
"""
import sys
from statistics import median

import requests

FIELD = sys.argv[1] if len(sys.argv) > 1 else "segment"
REGION = sys.argv[2] if len(sys.argv) > 2 else None

data = requests.get("https://joinplank.com/fde-jobs.json", timeout=30).json()
jobs = data["jobs"] if isinstance(data, dict) else data
if REGION:
    jobs = [job for job in jobs if job.get("region") == REGION]


def midpoint(job: dict) -> float | None:
    """salary is [min, max] when the posting discloses pay, else null."""
    pay = job.get("salary")
    if not pay or None in pay:
        return None
    return (pay[0] + pay[1]) / 2


paid = [(job, mid) for job in jobs if (mid := midpoint(job)) is not None]
print(f"{len(jobs)} postings, {len(paid)} with pay ({len(paid) / max(len(jobs), 1):.1%})")
print(f"median base midpoint: ${median(m for _, m in paid):,.0f}")

groups: dict[str, list[float]] = {}
for job, mid in paid:
    groups.setdefault(job.get(FIELD) or "unknown", []).append(mid)
for name, mids in sorted(groups.items(), key=lambda kv: -median(kv[1])):
    print(f"{name:<32} n={len(mids):<4} median ${median(mids):,.0f}")

Postings are the most specific public description of the job. OpenAI's FDE posting for San Francisco, published September 11, 2026, says FDEs “own discovery, technical scoping, system design, build, and production rollout” and measures success through “production adoption, measurable workflow impact, and eval-driven feedback that changes product and model roadmaps”. It asks for five or more years including customer-facing work and travel up to 50%, pays $185K–$300K plus equity, and describes no interview steps. Its April 2025 predecessor paid $220K–$280K for four or more years; the band nearly doubled in width while its midpoint fell $7,500, which we read as one title stretched over more levels.

The same posting spells out the behavioral bar: “Scope work, sequence delivery, and remove blockers early”; “Make trade-offs between scope, speed, and quality; adjust plans to protect delivery”; “Spot risks early and adjust without slowing down”; “Model calm and judgment when the stakes are high”. Each phrase maps to a round. Scoping is the customer or decomposition case (Chapter 13), build is the design and coding rounds, adoption and eval-driven feedback are the evaluation questions of Chapters 9 and 10, and calm judgment is the behavioral round (Chapter 14).

Anthropic's London FDE posting asks FDEs to “Deliver technical artifacts for customers like MCP servers, sub-agents, and agent skills that will be used in production workflows” and to “Travel frequently (25-50%)”, for £225,000–£255,000. Its text asks for four or more years while its application form asks about eight. On October 7 Anthropic's FDE individual-contributor roles were open only in London, Paris and Munich, and US forward-deployed delivery was posted as Technical Deployment Lead. The Harness Engineering book covers the agent loops, tools and context behind those deliverables.

Most employers pair the engineer with a role that does not write production code. Anthropic's Technical Deployment Lead owns “value measurement and ROI” and states the split: “You won't write production code, but you will own the technical direction of engagements alongside FDEs.” OpenAI's Deployment Lead is measured on “delivery reliability (milestones hit, low reopen/churn), operating leverage (patterns reused across deployments), judgment under pressure, and product impact”, and Cursor staffs “a pod of one Strategist and 1-2 FDEs”. Cursor's posting also tells FDEs to “Measure the outcome that matters (revenue, cost, hours saved, error rate, cycle time, escaped defects), not seat adoption”. Know which half of the pair you are interviewing for.

Ranges and travel as posted on each employer's public job board on October 7, 2026; blank cells were not in our read of the posting. Assuming a 46-week working year, 25–50% travel means 11.5 to 23 weeks on site, and a Palantir deployment strategist at 75% spends about 34.5.

OpenAI grades its FDEs partly on feedback that changes roadmaps, so expect to be asked how you produce it.

The next question is not on the list of 33, but this section's evidence is its answer, and it is the worked example that the section on grading takes apart.

The evidence starts with Bloomberry's analysis, which finds three jobs under the title: a Builder FDE (60% of postings, 70–90% coding, 30–50% travel, $140–250K), a “Sales Engineer+” (30%, 30–40% coding, under 20% travel, $120–200K plus commission) and an internal tools or go-to-market engineer (10%, under 5% travel, $100–180K). Across all three, 70% of postings mention equity, 8% on-target earnings and none a quota.

Estimates of time spent coding disagree. Gergely Orosz's opinion is “~25% coding-related, 50% integration/plumbing, 25% meetings and customer hand-holding”; a survey by Perspective AI, a vendor that sells an AI interviewer, claims 31% code by an unaudited method; Bloomberry's builder type codes 70–90% by posting text. Quote the one that matches the role in front of you.

The critique is that the title is a rebrand. Orosz wrote in May 2026 that the role “is about to become indistinguishable from a solutions architect or consultant”, and summed it up as “You are a contractor who codes at a customer's office.” a16z's Tom Hollands writes that in 2011 Palantir took “their solutions engineers and integration engineers ... and gave them a new title”, which he calls title arbitrage. Chris Degnan, Snowflake's former chief revenue officer, called the FDE a “glorified professional services person” who will leave “a lot of technical debt”, and the top comment in a Hacker News thread called the role “just a title change for Solutions Architects”. A reply drew the line at building: SAs “provide guidance. FDEs actually build things alongside the customer engineers.”

The employers' answer rests on where the code runs and how the work is paid. Per Pragmatic Engineer, OpenAI's solutions architects “rarely write code on customers' infrastructure” while its FDEs “write code directly on customer infrastructure”, and Colin Jarvis, who heads the FDE team, said the team “avoids ‘services revenue’”, as Business Insider reported. AWS says its deployments are “structured around shared goals and business results, not billable hours”. Databricks is the counterexample: its postings say “FDEs are billable”. Ask which model you would be joining.

The coding-share argument also misses where engagements spend their time. In Qureshi's pilots it was data access. At Morgan Stanley, per the same Business Insider report, “technical scaffolding took six to eight weeks”, and pilots, evaluations and iteration with wealth advisors took “another four months”, so the build was a quarter to a third of the elapsed time. The rest, evaluation and trust, is the part a solutions architect hands off and an FDE owns.

Few companies publish their FDE loop, and what they publish fits in one figure. Everything else comes from candidates and prep sites, and the two often get mixed.

OpenAI's interview guide covers all roles: résumé review (typically about a week), introductory calls, a skills-based assessment (“pair coding interviews, take-home projects, technical tests, etc.”), final interviews and a decision “within one week of your final interviews”. Finals are “4–6 hours of final interviews with 4–6 people over 1–2 days”, about 60 minutes per interviewer and virtual by default, and the published cadence alone implies at least four weeks of waiting. The engineering criteria are “well-designed solutions to the challenge, high-quality code, optimal performance, and good test coverage”, plus communication and collaboration, and the guide says “We are not credential-driven”.

Palantir's Getting Hired pages say interviews are “personalized”, that “Everyone starts with one or two phone interviews” of 20 to 45 minutes, and that the process rests on six competency guides: The Phone Interview, Writing Good Code, Analyzing the Efficiency of Code, Navigating Open-Ended Questions, Solving Technical Problems, and Working Inside Existing Systems. The open-ended guide describes problems “with multiple possible solutions that will incur different trade-offs” and advises “Deliver a functioning idea first, then expand it afterwards.” None of the six guides uses the word “decomposition”. The “decomp” round candidates describe maps onto Navigating Open-Ended Questions, and the “re-engineering” round onto Working Inside Existing Systems.

Intuit publishes an engineer timetable that totals 255 to 285 minutes of the candidate's time, with feedback “within 24 hours”. Databricks prints its Solutions Architect loop in the posting, ending in a “Build, Demo, Pitch!” presentation, and its careers page describes four to six onsite interviews over a two-to-three-month process. Snap runs a recruiter screen, an initial interview with a values question, a virtual loop on HackerRank that includes AI-assisted coding, and an offer. Sierra's April 2026 loop is in the next section.

Pick a company to see its published stages, the minutes it gives for each and its rule on AI in that round. PREP SITES shows the composite that prep sites describe, drawn dashed because it is secondary.

That composite comes from Aced (formerly Exponent), which describes a typical FDE loop of 5–8 stages over 3–6 weeks, with a decomposition case it calls “the hardest round” and a 4–8 hour take-home at some companies. Its Anthropic page calls the customer-conversation simulation “reportedly the decisive round”. Pass rates circulate too, such as about 40% for Palantir's decomposition round; they appear only on prep sites that cite each other, and we could not confirm any of them.

Candidate reports add detail, one person at a time. An OpenAI FDE candidate on Aced's experiences page described a one-week take-home (“a semantic search setup over Amazon products for ChatGPT”) and an “AI-enabled coding screen” that was “basically an easy LeetCode problem”, and wrote “The weirdest part was that the take home was basically the job.” A Palantir new-grad candidate on Reddit described two 45-minute decomposition rounds (assigning hospital rooms; costing a warehouse delivery network as a min-cost flow) in which the requirements changed mid-conversation. Snorkel AI's FDE screen, as described to one candidate, handed over a client brief, a ground-truth CSV and a set of model outputs, and asked what to measure.

Job descriptions rarely help: of 1,765 that Grigorev analyzed, about 80 (4.5%) describe the interview process. Ask the recruiter for the stages, their length and the AI rule for each round.

The largest change to technical interviews in 2025 and 2026 is the rule on AI tools, and it is not settled. Policies split three ways (banned unless stated, decided per format, and built in), and one company can apply different rules at different stages.

Surveys show the same split. CoderPad's State of Tech Hiring 2026 (about 650 respondents) found that 34% ban AI in technical interviews, 46% allow it and 20% decide case by case, and where it is allowed, 66% prioritize “catch & fix AI mistakes”. The UnchartedCareer tracker of 20 published policies, updated August 6, 2026, counts 10 bans, one that discourages AI, four that allow it, four that require it and one with no published rule. Meta's AI-enabled round is scored on problem solving, code quality, verification and communication, according to Hello Interview.

The case for bans rests on cheating data. In a January 2024 experiment, interviewing.io had candidates secretly use ChatGPT in 32 analyzed interviews: they passed 73% of verbatim LeetCode questions (11 interviews), 67% of modified ones (9) and 25% of custom questions (12), against a 53% platform average, and no interviewer reported suspecting cheating. Its 2025 survey of 67 interviewers found that 81% suspected AI cheating, and Gartner found that 6% of 3,000 job candidates surveyed in the second quarter of 2025 admitted interview fraud.

The figure draws each pass rate with its 95% Wilson interval; drag the slider to see how the intervals would narrow with more interviews at the same rates. As run, the verbatim and modified intervals (43.4–90.3% and 35.4–87.9%) cannot be told apart, and the custom arm (8.9–53.2%) overlaps the verbatim one by about ten points. At twice the interviews verbatim and custom separate; at ten times, verbatim and modified still overlap. Non-overlap is a stricter test than comparing two arms directly, which is how the post's own significance note can single out the custom arm. The practical finding survives the small samples. AI help stopped working on custom questions, and candidates report multi-part coding problems that add requirements as they go at OpenAI, Palantir and Anthropic.

The intervals come from wilson.py, which Chapter 9 reuses for eval pass rates; the Evaluating Agentic AI book covers small-sample statistics in depth.

"""Wilson score intervals for small-sample pass rates.

Python 3.11+, standard library only. Chapter 9 reuses wilson() for evals.
"""
from math import sqrt
from statistics import NormalDist


def wilson(passed: int, n: int, confidence: float = 0.95) -> tuple[float, float]:
    """Interval for passed/n that stays inside [0, 1] and behaves for small n."""
    if n == 0:
        return (0.0, 1.0)
    z = NormalDist().inv_cdf(1 - (1 - confidence) / 2)
    p = passed / n
    denom = 1 + z * z / n
    center = (p + z * z / (2 * n)) / denom
    half = (z / denom) * sqrt(p * (1 - p) / n + z * z / (4 * n * n))
    return (max(0.0, center - half), min(1.0, center + half))


def gap(a: tuple[float, float], b: tuple[float, float]) -> float:
    """Distance between two intervals; negative when they overlap."""
    return max(a[0], b[0]) - min(a[1], b[1])


# interviewing.io, January 2024: passes rebuilt from the published rates and n
ARMS = {"verbatim": (8, 11), "modified": (6, 9), "custom": (3, 12)}

if __name__ == "__main__":
    for name, (k, n) in ARMS.items():
        lo, hi = wilson(k, n)
        print(f"{name:<9} {k:>2}/{n:<2} = {k / n:6.1%}  95% CI [{lo:.1%}, {hi:.1%}]")
    for scale in (1, 2, 5, 10):  # the figure's slider: same rates, more interviews
        v, m, c = (wilson(k * scale, n * scale) for k, n in ARMS.values())
        print(f"x{scale:<2} verbatim vs custom {gap(v, c) * 100:+.1f} pts, "
              f"verbatim vs modified {gap(v, m) * 100:+.1f} pts")

Anthropic shows the tension from both sides. It bans AI in live interviews by default, yet its performance take-home, completed by more than 1,000 candidates since early 2024, allowed AI tools. In January 2026 Tristan Hume described how the models caught up until Claude Opus 4.5 matched the best human result within two hours, and when Anthropic open-sourced the old take-home, none of the first day's submissions below 1,300 cycles was valid: “In each case, a language model modified the tests to make the problem easier.”

Sierra went furthest. Its April 22, 2026 post says “We removed our coding and algorithms interviews and replaced them with an AI-native onsite.” The candidate plans a product with the interviewer, builds it alone “over 2 hours, using the AI tooling and frameworks of their choice”, then reviews the demo, the code, the path to production and how AI was used.

Sierra's review asks how the candidate used AI, and Snap says AI fluency “may be evaluated”, so expect the next question wherever AI is allowed. Answer with your own project; the shape transfers.

The candidate who posted the 33 questions grouped them into seven themes: inference, RAG, agents and orchestration, guardrails and responsible AI, evaluation and observability, coding, and system design with FDE cases. No company published these questions, so we traced each one before writing about it.

Most of the list matches prep-site text. In our comparison with two pages from Aced (formerly Exponent), its definitive 2026 FDE guide and its 45+ AI engineer interview questions, 13 questions match near-verbatim, 8 match the same scenario in different wording, and 12 have no match: 21 of 33, or 64%. The FDE guide was online by May 28, 2026, when the University of Kentucky's career center reposted it (Harvard's FAS career center followed on August 1), and it contains 14 of the 33, among them the per-user and global rate limiter and the slipped deployment with a CTO on the line.

The overlap shows where the wording came from and says nothing about whether interviewers ask the questions. Aced says every question on its list “is pulled from real interviews candidates reported to us”, which we cannot check because its question pages put company statistics behind a paywall. The list counts as one source family with company names attached, and a prep site's “asked at OpenAI” tag is a claim to verify. The copying runs through GitHub too: one 2026 company-wise repository matches IGotAnOffer's Anthropic and OpenAI lists almost word for word.

Corroboration varies widely. The best-corroborated question is batching LLM requests on one GPU while users wait, reported by at least six source families. An Anthropic infrastructure engineer's loop report from February 2026 describes a system design round on an inference API with variable-length requests, GPU memory, a priority queue, streaming, dynamic batching, the KV cache and autoscaling, and says “if you only prepare for one thing at Anthropic make it this.” Chapter 2 answers it, and our post on why LLM inference is slow covers the background. At the other end, the AI recruiter (Question 15) and body-camera reports (Question 30) have no interview source, and micro versus macro F1 (Question 21) appears in none of the 25 question collections we downloaded and in no candidate report. We answer those three as likely design scenarios and label them that way.

Topic counts across the 25 collections, which are regex matches over README text and so lower bounds, show where the public supply concentrates: observability or tracing in 17, chunking and hallucination in 15, the KV cache, MCP, reranking and quantization in 13, LLM-as-judge in 12, prompt injection in 11, Kafka and voice agents in 3, HIPAA in 2, and micro versus macro F1 in none. Weight your preparation by corroboration and by your target company's postings, and expect follow-ups that no list contains: OpenAI says its finals are designed to “stretch you beyond your comfort zone”.

The seven themes map onto rounds of the loop and onto chapters of this book. The usual round for each theme is our reading of candidate reports and prep pages, since no company publishes which question goes in which round.

Each square is a question, with its chapter underneath. White squares match an Aced page near-verbatim, hatched ones match its scenario, solid black ones come from other sources, and dashed ones have no interview source. Filter with the buttons, then hover over or tab to a square for its chapter, usual round and the number of source families that report it.

The near-verbatim matches cluster in inference, coding and the design cases. The questions with no Aced match are mostly deeper technical ones, such as the KV cache, autoscaling, document versioning, LangGraph, MCP and Kafka. Evaluation runs through every round, and Aced calls “How do you know it's working?” “the differentiator question”.

The question index, by chapter:

• Chapter 2 (Batching and the KV Cache): batching requests on one GPU while users wait (1) and why the KV cache limits concurrency (2).
• Chapter 3 (Scaling, Compressing and Diagnosing a Model Server): autoscaling inference on Kubernetes (3), distillation versus quantization (4) and diagnosing high latency (5).
• Chapter 4 (Retrieval from First Principles to 50M Patient Records): ingesting large tables (7), prompting versus RAG versus fine-tuning (8) and RAG over 50M patient records under HIPAA (28).
• Chapter 5 (Structuring Agent Work): a claims agent on a token budget (9), a LangGraph summarizer (11) and multi-agent orchestration (12).
• Chapter 6 (Customer-Facing Agents): a support agent with tools, memory and human handoff (10) and a voice calling agent (14).
• Chapter 7 (Securing the Action Surface): MCP with authentication, RBAC and schema-validated calls (13) and guardrails (16).
• Chapter 8 (Regulated Decisions): an AI recruiter for sales hiring (15) and responsible AI for regulated decisions (17).
• Chapter 9 (Evaluation: Proving It Works): how you know a system works (18), LLM judges (19) and micro versus macro F1 (21).
• Chapter 10 (Operating in Production): hallucination and repetition (20), regressions and rollback (22) and agent observability (23).
• Chapter 11 (Data Pipelines): document versioning (6) and Kafka into an AI pipeline (27).
• Chapter 12 (The Coding Round): a rate limiter (24), async retries (25) and a RAG pipeline over a folder (26).
• Chapter 13 (The Case and Design Round): search from 1.5 s to under 100 ms (29), body-camera audio to a reviewed report (30) and fraud detection across three acquisitions (31).
• Chapter 14 (The Behavioral Round): a system you owned (32) and a three-week slip told to the CTO (33).

Companies that publish how they interview describe structured interviews scored against rubrics, and the selection research backs them. In Sackett, Zhang, Berry and Lievens's 2022 re-analysis, structured interviews have the highest mean operational validity of the common predictors, .42, against .19 for unstructured interviews, so they explain about 4.9 times as much of the variance in job performance (the squares are .176 and .036). Their 80% credibility interval runs from .18 to .66, which means validity depends on how the interview is run.

The published processes have the same parts. Google's re:Work guide, updated in March 2026, defines structured interviewing by vetted questions, recorded feedback, standardized rubrics (outstanding, solid, borderline, poor) and trained, calibrated interviewers. Stripe's Atlas guide publishes a 1-to-4 communication rubric in which a 1 “talks exclusively about things other than their personal work and contributions” and a 4 conveys “their personal trajectory and impact”. Amazon says answers “should include metrics or data where applicable”.

Every model answer in this book follows one shape, built for rubrics like these:

1. Claim. Answer the question in the first sentence, in your own words.
2. Number. Give the figure that makes the claim checkable, with its source or its arithmetic: a memory budget, a pass rate with its interval, a timeline. It is also what the interviewer will probe.
3. Trade-off. Name what your choice costs and when you would choose differently. Palantir defines its open-ended competency by solutions that “will incur different trade-offs”, and OpenAI asks FDEs to trade off “scope, speed, and quality”.
4. Next step. End on what you would do or ask next, the instinct behind Palantir's “Deliver a functioning idea first, then expand it afterwards”.

The FDE answer earlier in this chapter follows the shape. Its first sentence is the claim, that an FDE owns a deployment from discovery to production and is judged by adoption. The numbers are Bloomberry's 70–90% coding for builders against 30–40% for the sales-engineer type. The trade-off is the loose title, with the critique named. The next step is the pair of questions turned back to the interviewer. Spoken, it takes about two minutes, inside the two to three that CMU's Tepper guide recommends for a STAR story.

Motivation answers are graded the same way, and they can decide an outcome: a Palantir FDSE candidate reported being asked “Why Palantir / Why Government / Why FDSE” in round after round and being rejected on mission alignment.

What to do on Monday: pick the company you are interviewing with and run fde_postings.py against its board. Read its FDE posting line by line and map each responsibility to a round, the way the postings section does for OpenAI. Email the recruiter three questions: the stages and their length, which rounds allow AI and with which tools, and whether there is a take-home. Then record yourself answering “What is an FDE, and how is it different from a solutions architect?” in under three minutes, and check the recording against the four parts: claim, number, trade-off, next step.

Chapter 2 · Inference I

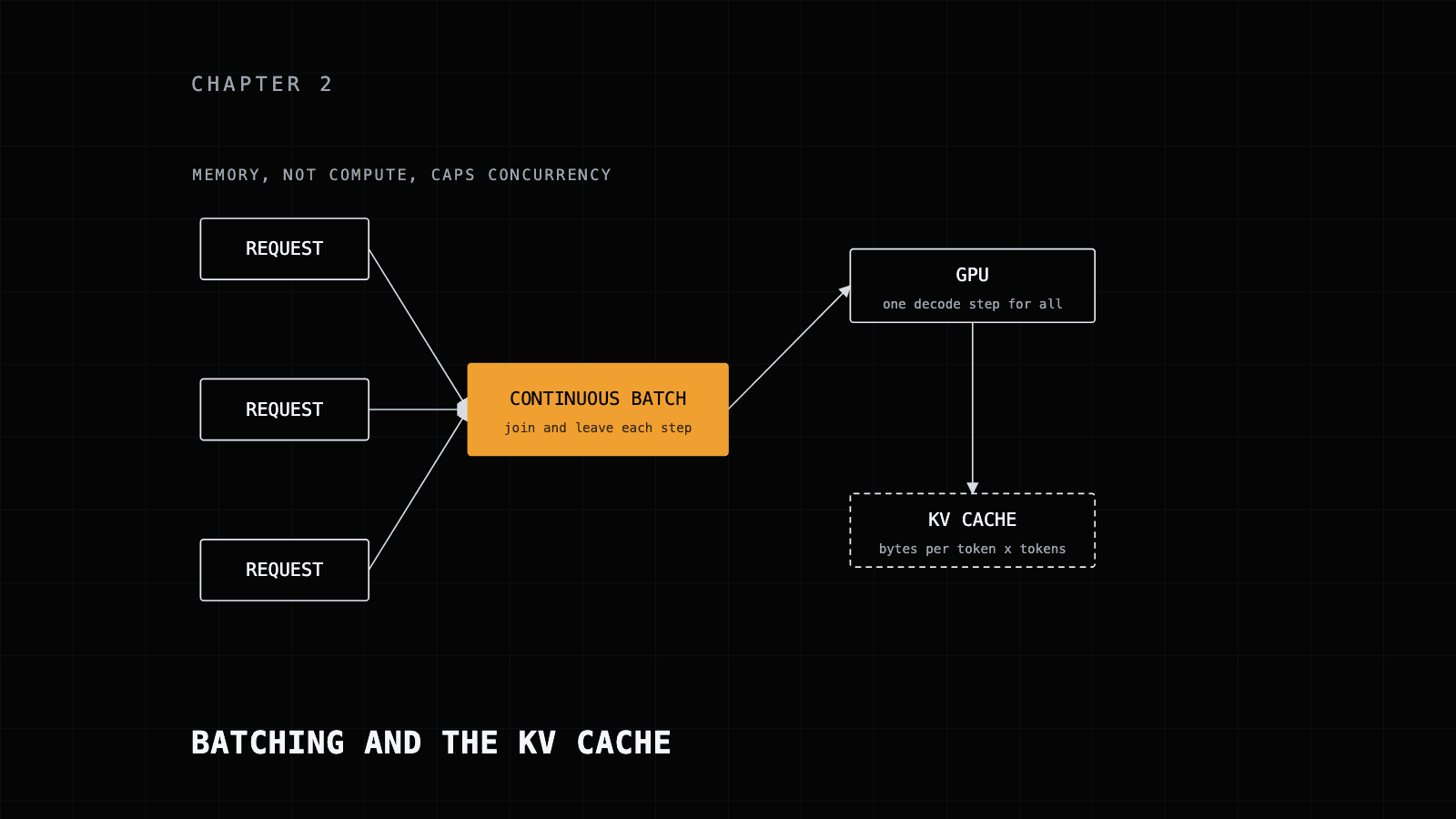

Batching and the KV Cache

Why one decode step costs nearly the same for one user or forty until their cache fills memory, why memory rather than compute caps how many fit, and the arithmetic that turns a config.json into a concurrency limit an interviewer can check.

Batching requests on one GPU is the best-corroborated question in this book's bank. Aced lists it first among its AI engineer questions and attributes it to Anthropic, IGotAnOffer lists two variants, and an Anthropic infrastructure candidate described a design round that covered dynamic batching, the KV cache and a priority queue. Its companion, what the KV cache is and why it limits concurrency, appears in 13 of the 25 question collections the researchers downloaded. These are prep-site compilations and candidates' accounts, and no 2025 or 2026 report the researchers found names a concrete KV-sizing or vLLM-tuning question at OpenAI, Anthropic, NVIDIA, Databricks or Cohere; Chapter 1 explains how we weigh such sources.

The two questions share one answer. Decode is limited by memory bandwidth, so batching is nearly free; the batch you can run is limited by the cache you can hold, so memory sets concurrency; and the scheduler keeps that cache full of useful work without making anyone wait long for the next token. Forward deployed engineers meet this on customer hardware, and NVIDIA's posting for a Senior Solutions Architect, AI Inference asks for "Deep knowledge of modern inference best practices including disaggregated serving, multi-tier KV cache management, speculative decoding, quantization and custom inference kernels" and names forward deployed engineering as relevant background. The reference engine in this chapter is vLLM v0.31.0, released 2026-10-05; Chapter 3 continues with autoscaling, quantization and latency diagnosis.

Every generation request runs in two phases. Prefill pushes the whole prompt through the model in one forward pass: each weight loaded from memory is multiplied against thousands of token vectors, so the tensor cores set the pace. A useful rule of thumb puts prefill at about 2 × parameters × prompt tokens FLOPs, plus attention terms that grow with the square of the prompt length.

For a 70B model and an 8,192-token prompt that is 1.15 × 10¹⁵ FLOPs. One H100 at its dense FP8 rate of 1,979 TFLOPS and 50% utilization needs about 1.16 s before the first token; eight H100s need about 0.15 s and one B200 about 0.51 s (the book's arithmetic on NVIDIA's spec sheets). MLPerf's interactive Llama 2 70B scenario allows 450 ms of time to first token at p99, so a long prompt on a single GPU misses the target before it has queued behind anyone.

Decode then produces one token per sequence per step. Each step reads every weight, plus the cache of every sequence, from high-bandwidth memory, and does only a couple of FLOPs per byte it reads. Bandwidth sets the pace, and dividing bytes by bandwidth gives a floor. Llama 3.3 70B in FP8 is about 70 GB; an H200 streams 4.8 TB/s; so no step finishes in under about 14.6 ms, about 69 tokens per second for a single user. A B200 at 8 TB/s brings the floor to about 8.8 ms, and Llama 3.1 8B in BF16 on an H100 sits at about 4.8 ms. Databricks gives the measured counterpart: a 7B FP16 model at 14 ms per token moves about 1 TB/s, 50% model bandwidth utilization on 2 TB/s hardware.

That floor is why batching works. The weights cost the same 14.6 ms whether a step serves one sequence or forty, so each added sequence brings only its own cache reads and a sliver of compute. Anyscale's engineers put it in one line in 2023: "LLM inference throughput is largely determined by how large a batch you can fit into high-bandwidth GPU memory." The roofline behind the split is the subject of The Real Reason LLM Inference Is Slow, and the memory hierarchy underneath it of GPU Architecture and Programming.

The figure computes one decode step of Llama 3.3 70B with FP8 weights on one H200 from those numbers, 320 KiB of BF16 cache per token (160 KiB in FP8), compute at two FLOPs per weight per sequence against 1,979 dense FP8 TFLOPS at 50% utilization, and the 54.7 GB cache budget of Section 7. Attention FLOPs and kernel overheads are left out, so every time is a floor.

Drag BATCH from 1 to 20 at 8K: the step floor rises from 15.1 ms to 25.8 ms, per-user speed falls from 66 to 39 tokens per second, and total throughput climbs from 66 to 776. At 21 the cache no longer fits. Switch to FP8, set CONTEXT to 1K and push BATCH past about 140, and the compute bar overtakes memory: that is where decode stops being bandwidth-bound. The dashed line is MLPerf's 40 ms interactive limit on time per output token. That limit, and the 15 ms MLPerf sets for gpt-oss-120b and DeepSeek-R1 in their interactive scenarios, sit only one to three times above these floors (the book's arithmetic), which is why the room for batching shrinks as interactivity targets tighten.

The two phases set the two latency numbers users feel: time to first token (TTFT), which covers queueing, prefill and the network, and inter-token latency (ITL), the gap between streamed tokens that decode sets. Benchmarking tools define them slightly differently, and Chapter 3 pins the definitions down.

Frame the workload before drawing boxes. If the interviewer gives no latency target, borrow MLPerf's: MLCommons set the 40 ms limit after finding a median of 20 to 50 tokens per second critical for a seamless chat experience. Ask for the length distributions too, since 500-token and 30,000-token prompts need different schedulers.

The answer prep sites give is a request-level batcher with two triggers. Aced's model answer flushes when the batch reaches its maximum size (100 in the question) or when a wait window of 5 to 20 ms expires, buckets requests by length, pushes back when the queue grows and mentions continuous batching for token generation. That design is right for a model that runs one fixed batch per call: an embedder, a reranker, a classifier, or a generate() that pads a batch and runs it to completion. Here is a version with the parts interviewers probe: two flush triggers, a bounded queue that refuses work instead of growing, a deadline per request, and a batch that fails as a unit without taking the worker down.

"""micro_batcher.py: request-level batching for a model that runs one fixed
batch per call (an embedder, a reranker, a classifier, a static generate()).
Python 3.11+, standard library only. In front of vLLM, SGLang or TensorRT-LLM,
keep the bounded queue and the deadlines and drop the wait window: the engine
re-forms its batch every decode iteration.
"""
import asyncio
import time
from collections.abc import Callable, Sequence


class Overloaded(Exception):
    """Raised at admission. Map it to HTTP 429 or 503 with a Retry-After header."""


class MicroBatcher:
    def __init__(self, run_batch: Callable[[Sequence[str]], list[str]], *,
                 max_batch: int = 32, max_wait_ms: float = 10.0, max_queue: int = 256):
        self.run_batch = run_batch          # blocking call that owns the GPU
        self.max_batch = max_batch          # trigger 1: the batch is full
        self.max_wait = max_wait_ms / 1000  # trigger 2: the oldest request has waited enough
        self.queue: asyncio.Queue[tuple[str, asyncio.Future[str]]] = asyncio.Queue(max_queue)
        self.worker: asyncio.Task[None] | None = None

    async def submit(self, item: str, timeout_s: float = 30.0) -> str:
        if self.worker is None:
            self.worker = asyncio.create_task(self._loop())
        fut: asyncio.Future[str] = asyncio.get_running_loop().create_future()
        try:
            self.queue.put_nowait((item, fut))  # backpressure: refuse now, never block
        except asyncio.QueueFull:
            raise Overloaded(f"{self.queue.maxsize} requests already waiting") from None
        return await asyncio.wait_for(fut, timeout_s)  # the caller's own deadline

    async def _loop(self) -> None:
        while True:
            batch = [await self.queue.get()]  # sleep until there is work
            deadline = time.monotonic() + self.max_wait
            while len(batch) < self.max_batch:
                try:
                    async with asyncio.timeout(deadline - time.monotonic()):
                        batch.append(await self.queue.get())
                except TimeoutError:
                    break
            live = [(x, f) for x, f in batch if not f.done()]  # skip callers that gave up
            if not live:
                continue
            try:
                outs = await asyncio.to_thread(self.run_batch, [x for x, _ in live])
            except Exception as exc:  # one bad batch fails its callers, not the server
                for _, f in live:
                    if not f.done():
                        f.set_exception(exc)
                continue
            for (_, f), out in zip(live, outs, strict=True):
                if not f.done():
                    f.set_result(out)


if __name__ == "__main__":
    import random

    def fake_model(batch: Sequence[str]) -> list[str]:  # stand-in for one GPU call
        time.sleep(0.015 + 0.0005 * len(batch))         # illustrative timings only
        return [x.upper() for x in batch]

    async def main() -> None:
        mb, lat, shed = MicroBatcher(fake_model), [], 0

        async def one(i: int, at: float) -> None:
            nonlocal shed
            await asyncio.sleep(at)
            t0 = time.perf_counter()
            try:
                await mb.submit(f"req {i}")
                lat.append((time.perf_counter() - t0) * 1000)
            except Overloaded:
                shed += 1

        arrivals = [random.expovariate(1500) for _ in range(2000)]  # 1,500 requests/s
        await asyncio.gather(*(one(i, sum(arrivals[: i + 1])) for i in range(2000)))
        lat.sort()
        print(f"served {len(lat)}, shed {shed}, p50 {lat[len(lat) // 2]:.0f} ms, "
              f"p99 {lat[int(len(lat) * 0.99)]:.0f} ms")

    asyncio.run(main())

Three decisions in that file are worth defending out loud. The wait window spends TTFT on purpose: 10 ms of waiting against a 450 ms budget buys fuller batches. The queue bound turns overload into an immediate 429 or 503 instead of a timeout thirty seconds later; the demo offers 1,500 requests per second to a stand-in model that serves about 1,000 at full batches, sheds the excess, and keeps latency for admitted requests bounded by the queue length. And run_batch runs in a worker thread, so a blocking GPU call never stalls the event loop that accepts requests.

In front of a generation engine the file changes shape. vLLM, SGLang and TensorRT-LLM schedule per iteration, so holding requests back to fill a batch mostly adds latency. Forward each request at once and let the engine's waiting queue do the batching; keep the bound, the deadline and the rejection path, and treat vllm:num_requests_waiting as the depth of that queue. Chapter 12 builds the rate limiter and the retry loop that sit on either side of it. The rest of this question happens inside the engine.

Three policies decide when a request enters the GPU's batch and when it leaves. Static batching collects a fixed group and runs it until the longest member finishes. Dynamic, or request-level, batching forms each group by size and time, as the file above does, and still runs the group to completion. Continuous batching, which the Orca paper (OSDI 2022) called iteration-level scheduling, "schedules execution at the granularity of iteration (instead of request)": after every decode step, finished sequences leave and waiting ones take their places. Orca paired it with selective batching, which batches only selected operations, and on GPT-3 175B reported 36.9x the throughput of NVIDIA FasterTransformer at the same latency.

The figure runs eight requests of different lengths through four batch slots.

Step through STATIC first. R4 finishes after two iterations, and its slot stays hatched for six more until R2 ends, while R5 to R8 wait in the queue. Switch to CONTINUOUS and the same eight requests finish five iterations sooner, because R5 takes R4's slot on the next step. No step got faster; the GPU stopped holding empty seats while requests waited.

Every speedup in this area is measured against a baseline, and the baselines differ by an order of magnitude. Quote the pair or neither.

The baselines explain the spread. Anyscale's naive one fell to 81 tokens per second at its highest variance of output length, while the vLLM paper compared against systems that already batched well. All of these gains end where the KV cache of the batch no longer fits in memory.

In vLLM this is the V1 scheduler's job. V1 became the default engine in v0.8.0 (March 2025) and the only one in v0.11.0 (October 2025), and async scheduling became the default in v0.14.0 (January 2026), per the release notes. Each step it hands the GPU a set of tokens, decode tokens for running sequences and prompt tokens for new ones, and a few settings shape that set.

max_num_batched_tokens is the token budget of one step. The scheduler spends it on decodes first, one token per running sequence, then fills what is left with prefill, chunking any prompt that does not fit; vLLM's optimization guide says chunked prefill is enabled by default whenever possible. Sarathi-Serve (OSDI 2024) introduced chunked prefills with stall-free schedules. The guide states the trade: smaller budgets such as 2048 give better inter-token latency, larger ones better TTFT, and for throughput it recommends more than 8192, especially for smaller models on large GPUs.

The figure shows why the budget trades one latency against the other. A long prompt arrives while other users are decoding.

With NO CHUNKING the prefill fills one long step and every running user waits through it for the next token. SMALL BUDGET splits it into four chunks that share steps with the decodes: the longest gap shrinks, and the new prompt's first token lands after the dashed line, later than it would unchunked. LARGE BUDGET sits between the two. The units are illustrative; the direction is the one the vLLM guide describes. Chunking does not remove interference under bursts: in their DistServe retrospective, Hao AI Lab's authors write that "a single large prefill can inflate TPOT by 2~30x, especially under bursty workloads", one argument for running prefill and decode on separate GPUs.

The other settings decide how large the batch may grow. Their defaults depend on the GPU and moved during 2026; the table pins them to vLLM's main branch in October 2026 (arg_utils.py and cache.py).

When a running sequence needs a block and none is free, V1 preempts, by recompute rather than swap by default: the victim's blocks are freed, it returns to the waiting queue, and its cache is recomputed when it resumes. Under first-come-first-served the victim is the most recently scheduled running request; under the priority policy it is the one with the largest priority value, the later arrival losing a tie (the V1 scheduler's source). The optimization guide's remedies for frequent preemption: raise gpu_memory_utilization, lower max_num_seqs or max_num_batched_tokens, or add tensor or pipeline parallelism.

Priority scheduling lets one engine serve a chat product and a batch job at once. Start the server with --scheduling-policy priority and send an integer priority in the request body: lower values run earlier, the default is 0, any other value is rejected unless the server runs the priority policy, and an X-Vllm-Priority header overrides the body (vLLM's server docs). Put together, one engine step runs like this.

A configuration for the running example, Llama 3.3 70B with FP8 weights on one H200, each flag annotated:

#!/usr/bin/env bash
# vllm_serve.sh: Llama 3.3 70B on one H200 (141 GB) for interactive chat.
# Flags as of vLLM v0.31.0 (October 2026). Several defaults moved during
# 2025 and 2026, so pin the version and write the values out.
set -euo pipefail

# --quantization fp8_per_tensor   FP8 weights quantized at load from the BF16
#                                  checkpoint: about 70 GB instead of about 140 GB
# --gpu-memory-utilization 0.92   the default since v0.20.0 (0.9 before); weights,
#                                  activations and the KV cache share this slice
# --kv-cache-dtype fp8            160 KiB per token instead of 320 KiB; without
#                                  calibration every scale is 1.0 (Section 9)
# --max-model-len 32768           the longest request: 5 GiB of FP8 cache, about a
#                                  tenth of the budget
# --max-num-seqs 64               the H200 default is 1024; 64 sequences average
#                                  about 5K tokens each in the ~334K-token budget
# --max-num-batched-tokens 2048   token budget per step: decodes first, prefill
#                                  chunks fill the rest; small favors ITL (the
#                                  OpenAI-server default on H100 and H200 is 8192)
# --enable-prefix-caching         on by default; written out for the reviewer
# --scheduling-policy priority    the request field "priority" orders the queue:
#                                  lower values first, ties by arrival
vllm serve meta-llama/Llama-3.3-70B-Instruct \
  --quantization fp8_per_tensor \
  --gpu-memory-utilization 0.92 \
  --kv-cache-dtype fp8 \
  --max-model-len 32768 \
  --max-num-seqs 64 \
  --max-num-batched-tokens 2048 \
  --enable-prefix-caching \
  --scheduling-policy priority \
  --port 8000

# An interactive request that jumps the queue and keeps its cached prefix
# to one tenant (send priority 0 or higher for batch work):
#   curl -s localhost:8000/v1/chat/completions -H 'Content-Type: application/json' \
#     -d '{"model": "meta-llama/Llama-3.3-70B-Instruct", "priority": -10,
#          "cache_salt": "<random secret per tenant>",
#          "messages": [{"role": "user", "content": "Summarize this ticket."}]}'

The values follow from the arithmetic in Sections 6 and 7 and are starting points for a load test: vllm bench serve with --burstiness (a Gamma shape, where 1.0 is Poisson) and --goodput (latency targets in milliseconds) shows whether they hold. Four metrics show how the scheduler copes: vllm:num_requests_waiting (the queue), vllm:num_requests_running (the batch), vllm:kv_cache_usage_perc (cache pressure, where 1 means 100 percent) and vllm:num_preemptions. Chapter 3 autoscales on the queue and the cache pressure.

This question is absent from Aced's lists. Outcome School's company-wise collection tags it to OpenAI, xAI, Mistral, Amazon, Apple, NVIDIA, Together and Character.AI and asks candidates to derive the formula, though the researchers found that the collection mirrors other prep lists. Expect the derivation and the arithmetic, done aloud.

The arithmetic was already visible in 2023. Anyscale's back-of-envelope for a 13B model came to about 1 MB of state per token: an A100 40GB holding 26 GB of weights leaves 14 GB, about 14K tokens, so at most about 28 sequences of 512 tokens or 7 of 2,048. The vLLM paper did it exactly for OPT-13B: 2 (K and V) × 5,120 hidden × 40 layers × 2 bytes = 800 KB per token, up to 1.6 GB for one 2,048-token request, with about 65% of an A100 40GB holding weights and close to 30% holding the cache.

Compute stays far from its limit at those batch sizes. In the decode figure of Section 1, 20 sequences of 8K need about 2.8 ms of compute per step against about 25.8 ms of memory traffic. Memory fills long before the tensor cores are busy, and everything it holds is read again on every step. The rest of this question is arithmetic: how many bytes per token a model needs (Section 6), how many tokens fit on a GPU (Section 7), how the engine manages them (Section 8) and how to shrink them (Section 9).

NVIDIA's inference optimization guide writes the cache per token as 2 × layers × (heads × head dimension) × bytes per element, where for grouped-query and multi-query models the heads are the KV heads. Every input is a field in the model's config.json.

\text{bytes per token} = 2 \times L \times H_{kv} \times d_{\text{head}} \times b

Llama 3.3 70B's config.json gives 80 layers, 64 attention heads, 8 KV heads and a head dimension of 128: 2 × 80 × 8 × 128 × 2 = 327,680 bytes, 320 KiB per token in BF16. Plain multi-head attention, with 64 KV heads, would need eight times as much; that eightfold saving is what grouped-query attention bought.

DeepSeek's multi-head latent attention (MLA) needs a different formula. Each layer caches one compressed latent vector of width kv_lora_rank (512) and one RoPE key of width qk_rope_head_dim (64) shared by all heads, so the head count drops out: (512 + 64) × 61 layers × 2 bytes = 70,272 bytes, about 68.6 KiB per token for DeepSeek-V3. An ordinary multi-head cache for the same 128 heads, with keys 192 wide and values 128 wide, would be 61 × 128 × (192 + 128) × 2 = 4,997,120 bytes, about 4.77 MiB, 71 times more. A GQA-style reading of this config gives a wrong answer, which is why the code below checks for kv_lora_rank first.

\text{bytes per token} = (r_{kv} + d_{\text{rope}}) \times L \times b

Hybrid models add one step: count only the layers whose cache grows with context. The gpt-oss model card describes 120b as alternating dense layers with banded-window layers that see 128 tokens, so its 18 full layers cost 2 × 18 × 8 × 64 × 2 = 36,864 bytes per token while the 18 window layers hold a fixed 4.5 MiB per sequence. Qwen3.8-27B lays out 64 layers as 16 groups of three Gated DeltaNet layers and one full-attention layer; only the 16 full layers (4 KV heads, head dimension 256) grow, at 64 KiB per token, while the linear-attention layers keep a fixed-size state. Llama 4 Scout and Maverick attend within 8,192-token chunks in 36 of their 48 layers (the transformers config), so past 8K only 12 layers grow. The script below reads these shapes from the config keys that carry them: layer_types, full_attention_interval, linear_attn_config.full_attn_layers and sliding_window.

"""kv_calc.py: KV cache bytes per token from a Hugging Face config.json, and
how many sequences fit in a KV budget. Python 3.11+.

    pip install huggingface_hub
    python kv_calc.py
"""
import json
from dataclasses import dataclass

from huggingface_hub import hf_hub_download

BYTES = {"bf16": 2, "fp16": 2, "fp8": 1}  # per stored element of K or V


@dataclass
class KV:
    per_token: int  # bytes each token adds, summed over the layers that grow
    per_seq: int    # bytes a sequence holds whatever its length (sliding windows)
    shape: str


def load(repo_id: str) -> dict:
    # Gated repos (meta-llama) need HF_TOKEN; mirrors such as unsloth's do not.
    with open(hf_hub_download(repo_id=repo_id, filename="config.json")) as f:
        cfg = json.load(f)
    return cfg.get("text_config", cfg)  # multimodal configs nest the language model


def kv_bytes(cfg: dict, dtype: str = "bf16") -> KV:
    b, layers = BYTES[dtype], cfg["num_hidden_layers"]
    if "kv_lora_rank" in cfg:  # MLA: one latent plus one shared RoPE key per layer
        r, rope = cfg["kv_lora_rank"], cfg["qk_rope_head_dim"]
        mla = (cfg.get("linear_attn_config") or {}).get("full_attn_layers")
        n = len(mla) if mla else layers  # Kimi Linear and K3: only MLA layers grow
        return KV(n * (r + rope) * b, 0, f"({r} + {rope}) x {n} layers x {b} B")
    kv_heads = cfg.get("num_key_value_heads", cfg["num_attention_heads"])
    head_dim = cfg.get("head_dim") or cfg["hidden_size"] // cfg["num_attention_heads"]
    types = cfg.get("layer_types")
    if types is None and (k := cfg.get("full_attention_interval")):  # Qwen3-Next style
        types = ["linear_attention" if (i + 1) % k else "full_attention" for i in range(layers)]
    types = types or ["full_attention"] * layers
    full, sliding = types.count("full_attention"), types.count("sliding_attention")
    per_layer = 2 * kv_heads * head_dim * b  # K and V
    window = cfg.get("sliding_window") or 0
    shape = f"2 x {full} layers x {kv_heads} kv heads x {head_dim} x {b} B"
    if sliding:
        shape += f", plus {sliding} layers capped at {window} tokens"
    return KV(full * per_layer, sliding * per_layer * window, shape)


def sequences_that_fit(kv: KV, context: int, hbm_gb: float, weights_gb: float,
                       util: float = 0.92, activations_gb: float = 5.0) -> float:
    """vLLM reserves util x HBM; weights and activations come out first (GB = 1e9 B)."""
    budget = (hbm_gb * util - weights_gb - activations_gb) * 1e9
    return budget / (kv.per_token * context + kv.per_seq)


if __name__ == "__main__":
    for repo in ["unsloth/Llama-3.3-70B-Instruct", "deepseek-ai/DeepSeek-V3",
                 "openai/gpt-oss-120b", "Qwen/Qwen3.8-27B"]:
        kv = kv_bytes(load(repo))
        at_128k = (kv.per_token * 131_072 + kv.per_seq) / 2**30
        print(f"{repo:31} {kv.per_token:>7,} B/token  {at_128k:5.2f} GiB at 128K  {kv.shape}")
    llama = load("unsloth/Llama-3.3-70B-Instruct")
    for dtype in ("bf16", "fp8"):  # one H200, FP8 weights (about 70 GB)
        for ctx in (8_192, 32_768):
            n = sequences_that_fit(kv_bytes(llama, dtype), ctx, hbm_gb=141, weights_gb=70)
            print(f"Llama 3.3 70B, one H200, {dtype} KV, {ctx // 1024}K: {n:.1f} sequences")

# unsloth/Llama-3.3-70B-Instruct  327,680 B/token  40.00 GiB at 128K  2 x 80 layers x 8 kv heads x 128 x 2 B
# deepseek-ai/DeepSeek-V3          70,272 B/token   8.58 GiB at 128K  (512 + 64) x 61 layers x 2 B
# openai/gpt-oss-120b              36,864 B/token   4.50 GiB at 128K  2 x 18 layers x 8 kv heads x 64 x 2 B, plus ...
# Qwen/Qwen3.8-27B                 65,536 B/token   8.00 GiB at 128K  2 x 16 layers x 4 kv heads x 256 x 2 B
# Llama 3.3 70B, one H200, bf16 KV, 8K: 20.4 sequences   (32K: 5.1)
# Llama 3.3 70B, one H200, fp8 KV, 8K: 40.8 sequences    (32K: 10.2)

The rows below come from each model's config.json, read on 2026-10-07, and an FP8 cache halves each of them; the last row is DeepSeek's own figure for a model that already stores its cache in FP4.

Bytes per token become users in three subtractions. vLLM claims gpu_memory_utilization of the card, 0.92 by default; the weights come out first, then activations and CUDA graphs; the rest is cache. For Llama 3.3 70B with FP8 weights on one H200: 141 GB × 0.92 = 129.7 GB, less about 70 GB of weights and about 5 GB of activations, leaves about 54.7 GB. That holds about 167K tokens with a BF16 cache or 334K with FP8: about 20 sequences of 8K or 5 of 32K in BF16, about 41 or 10 in FP8. This is the book's arithmetic and the 5 GB is an estimate, so treat the results as planning numbers to confirm in a load test.

Paging changes what the number means. The engine allocates blocks as tokens arrive, so the budget is a pool of about 167K token slots shared by sequences of any length: twenty users at 8K cost the same as 160 at 1K, and a capacity answer states the length distribution it assumes. Parameter count predicts little. Mistral-7B-v0.3 on one 80 GB GPU leaves about 59.1 GB of cache, about 451K tokens. Qwen2.5-72B in BF16 needs about 145 GB of weights: two 80 GB GPUs leave about 1.8 GB of cache (about 5,500 tokens, not viable), and four leave about 149 GB, about 455K tokens, the 7B model's budget on four times the hardware. (Both examples skip the activation estimate, so they are upper bounds.)

The calculator holds the 54.7 GB budget fixed and lets you change the model, the cache precision and the context length.

Pick LLAMA 3.3 70B at 8K to see the 20.4 sequences from above, then switch to FP8 KV and watch the count double. DEEPSEEK-V3 fits about 95 sequences of 8K in the same budget and GPT-OSS-120B about 178. Drag CONTEXT to 128K and Llama holds one sequence with room for a quarter of another. Because the budget is fixed, this compares the models per gigabyte of cache; on real hardware DeepSeek-V3's weights need a multi-GPU deployment and gpt-oss-120b's MXFP4 checkpoint is 60.8 GiB, so redo the subtraction for the deployment you are sizing.

Holding the cache is one cost and reading it is another. Every decode step reads the cache of every running sequence: at 20 × 8K in BF16 that is about 53.7 GB per step, nearly as much as the weights, which is why the step floor in Section 1 rises from 15.1 ms to 25.8 ms as the batch fills.

"""Starter: the KV cache of three models from their config.json values."""
QWEN3_235B = {"num_hidden_layers": 94, "num_attention_heads": 64,
              "num_key_value_heads": 4, "head_dim": 128}
KIMI_K3 = {"num_hidden_layers": 93, "kv_lora_rank": 512, "qk_rope_head_dim": 64,
           # 24 entries: 4, 8, ..., 92, 93; the other 69 layers are KDA (linear)
           "linear_attn_config": {"full_attn_layers": [*range(4, 93, 4), 93]}}
GLM_4_5 = {"num_hidden_layers": 92, "num_attention_heads": 96,
           "num_key_value_heads": 8, "head_dim": 128}
MODELS = [("Qwen3-235B-A22B", QWEN3_235B), ("Kimi K3", KIMI_K3), ("GLM-4.5", GLM_4_5)]
BUDGET = (141 * 0.92 - 70 - 5) * 1e9  # bytes of cache on one H200, as in Section 7


def kv_bytes_per_token(cfg: dict, bytes_per_elem: int = 2) -> int:
    raise NotImplementedError  # GQA and MLA; count only the layers whose cache grows


for name, cfg in MODELS:
    per_token = kv_bytes_per_token(cfg)
    # print: bytes per token, GiB for one 131,072-token sequence, 32K sequences in BUDGET

# Replace the starter's function and loop with these.
def kv_bytes_per_token(cfg: dict, bytes_per_elem: int = 2) -> int:
    if "kv_lora_rank" in cfg:  # MLA: one latent plus one shared RoPE key per MLA layer
        mla = (cfg.get("linear_attn_config") or {}).get("full_attn_layers")
        layers = len(mla) if mla else cfg["num_hidden_layers"]
        return (cfg["kv_lora_rank"] + cfg["qk_rope_head_dim"]) * layers * bytes_per_elem
    return 2 * cfg["num_hidden_layers"] * cfg["num_key_value_heads"] * cfg["head_dim"] * bytes_per_elem


for name, cfg in MODELS:
    per_token = kv_bytes_per_token(cfg)
    gib_128k = per_token * 131_072 / 2**30
    fit_32k = BUDGET / (per_token * 32_768)
    print(f"{name:16} {per_token:>7,} B/token  {gib_128k:5.2f} GiB at 128K  {fit_32k:4.1f} x 32K")

# Qwen3-235B-A22B  192,512 B/token  23.50 GiB at 128K   8.7 x 32K
# Kimi K3           27,648 B/token   3.38 GiB at 128K  60.4 x 32K
# GLM-4.5          376,832 B/token  46.00 GiB at 128K   4.4 x 32K

The evidence is in the vLLM paper (SOSP 2023). Before paging, "only 20.4% - 38.2% of the KV cache memory is used to store the actual token states in the existing systems"; the launch post put the waste at 60% to 80%, the same finding framed the other way, and paging brought it under 4%. The paper chose 16-token blocks as "large enough to efficiently utilize the GPU and small enough to avoid significant internal fragmentation in most workloads". With the memory back the batch grows: 2-4x the throughput of FasterTransformer and Orca at the same latency, and, per the launch post, LMSYS cut its serving GPUs by 50%. Sharing saves more: 6.1% to 9.8% of memory for parallel sampling and 37.6% to 55.2% for beam search on Alpaca, and 16.2% to 30.5% and 44.3% to 66.3% on ShareGPT.

Automatic prefix caching extends sharing across requests. vLLM's design doc hashes each block from its parent block's hash, its own token IDs and extra keys (LoRA IDs, multimodal input hashes, cache salts). A new request walks its prompt block by block and reuses every block whose hash is already cached. "We only cache full blocks," the doc says, so a prompt's partial tail is always computed. sha256 has been the default hash since v0.11, with sha256_cbor and xxhash as alternatives. Freed blocks join the tail of a least-recently-used free queue and stay reusable until they are evicted, which is how a shared system prompt survives between conversations.

Sharing opens a side channel: a cached prefix answers faster, so response times can reveal what another tenant sent. A per-request cache_salt goes into the hash of the first block, so only requests with the same salt reuse each other's blocks. vLLM's request schema asks for a salt that is random, protected from third parties and long enough to be unpredictable, such as 43 base64 characters (256 bits).

The bookkeeping fits in one class. This is a teaching model, not vLLM's code: block tables, reference counts and copy-on-write as the paper describes them, plus the hash chain, the salt and the LRU free queue from the prefix-caching design doc.

"""block_manager.py: the bookkeeping of a paged KV cache. Block tables and
copy-on-write as in the vLLM paper, plus prefix caching on a hash chain of
full blocks as in vLLM's docs. A teaching model, not vLLM's code (Python 3.11+).
"""
import hashlib
from dataclasses import dataclass, field

BLOCK = 16  # tokens per block, vLLM's default


@dataclass(eq=False)
class Block:
    id: int
    refs: int = 0
    tokens: list[int] = field(default_factory=list)
    hash: str | None = None  # set once the block is full


def chain(parent: str | None, tokens: list[int], salt: str) -> str:
    # The salt enters the first block's hash; each later hash covers its parent's,
    # so the salt, or one changed early token, reaches every block after it.
    seed = parent if parent is not None else f"salt:{salt}"
    return hashlib.sha256(f"{seed}|{tokens}".encode()).hexdigest()


class BlockManager:
    def __init__(self, num_blocks: int):
        self.free = [Block(i) for i in range(num_blocks)]   # the front is evicted first
        self.cache: dict[str, Block] = {}                     # full-block hash -> block
        self.seqs: dict[str, tuple[list[Block], str]] = {}  # id -> (block table, salt)

    def _take(self, tokens: list[int]) -> Block:
        if not self.free:
            raise MemoryError("out of KV blocks: preempt a sequence")
        b = self.free.pop(0)
        if b.hash and self.cache.get(b.hash) is b:
            del self.cache[b.hash]  # reusing a freed block evicts the prefix it held
        b.refs, b.tokens, b.hash = 1, list(tokens), None
        return b

    def _seal(self, b: Block, parent: str | None, salt: str) -> None:
        if len(b.tokens) == BLOCK:  # only full blocks are cached
            b.hash = chain(parent, b.tokens, salt)
            self.cache.setdefault(b.hash, b)

    def admit(self, seq: str, prompt: list[int], salt: str = "") -> int:
        """Build the block table for a new prompt; return the tokens found in cache."""
        table, hits = [], 0
        for i in range(0, len(prompt), BLOCK):
            chunk, parent = prompt[i:i + BLOCK], (table[-1].hash if table else None)
            b = self.cache.get(chain(parent, chunk, salt))
            if b is not None and hits == i:  # an unbroken run of full blocks from the start
                if b.refs == 0:
                    self.free.remove(b)  # a freed block that still holds this prefix
                b.refs, hits = b.refs + 1, hits + BLOCK
            else:
                b = self._take(chunk)
                self._seal(b, parent, salt)
            table.append(b)
        self.seqs[seq] = (table, salt)
        return hits

    def append(self, seq: str, token: int) -> None:
        """One decode step: write a token, copying the last block first if it is shared."""
        table, salt = self.seqs[seq]
        if len(table[-1].tokens) == BLOCK:
            table.append(self._take([]))
        elif table[-1].refs > 1:  # copy-on-write: never write into a shared block
            table[-1].refs -= 1
            table[-1] = self._take(table[-1].tokens)
        table[-1].tokens.append(token)
        self._seal(table[-1], table[-2].hash if len(table) > 1 else None, salt)

    def fork(self, seq: str, child: str) -> None:
        """Parallel sampling or beam search: the child shares every block."""
        table, salt = self.seqs[seq]
        for b in table:
            b.refs += 1
        self.seqs[child] = (list(table), salt)

    def release(self, seq: str) -> None:
        for b in reversed(self.seqs.pop(seq)[0]):  # the last block is evicted first
            b.refs -= 1
            if b.refs == 0:
                self.free.append(b)  # LRU: still cached until it reaches the front

from block_manager import BlockManager

m, system = BlockManager(num_blocks=64), list(range(1000, 1040))  # a 40-token prompt
print(m.admit("a", system + [1, 2, 3]))        # 0: cold cache
print(m.admit("b", system + [7, 8]))           # 32: two full blocks reused, 8 tokens new
m.fork("b", "b2")                              # a second sample of the same prompt
m.append("b2", 99)                             # copy-on-write of the shared last block
print(len(m.free))                             # 59: a took 3 blocks, b 1, b2's copy 1
print(m.admit("c", [999] + system[1:]))        # 0: one changed first token, no hits
print(m.admit("d", system, salt="tenant-42"))  # 0: same tokens, another tenant's salt
for seq in ("a", "b", "b2"):
    m.release(seq)
print(m.admit("e", system))                    # 32: freed blocks still hold the prefix

The demo walks through each behavior: a cold miss, two shared blocks, a copy-on-write, a changed first token that misses every block after it, a salted request that misses identical tokens, and a released prefix that still hits. When the free list is empty, _take raises, which is the point where Section 4's scheduler preempts a victim. The victim's full blocks stay in the cache until evicted, so a resumed request can find part of its own prefix waiting.

Across replicas a prefix helps only if the request lands where its blocks are. In llm-d's benchmark (8 vLLM pods on 16 H100s, Qwen-32B, 150 customers with 6,000-token contexts, cache demand at 73% of cluster capacity), precise prefix-cache-aware scheduling held p90 TTFT at 0.542 s against 31.083 s for approximate prefix routing and 94.865 s for load-aware routing, and KServe reported 3x the output tokens per second and 2x lower TTFT for Llama 3.1 70B on four MI300X after enabling it. Chapter 3 covers routing.

Two kinds of lever shrink the cache: change what the model stores, or change how the engine stores it. The first kind moved furthest in 2025 and 2026.

• Grouped-query attention. Several query heads share each key and value head, so 8 KV heads against 64 query heads save eightfold. The GQA paper found quality close to multi-head attention at speed comparable to multi-query attention.
• Latent attention. MLA caches a compressed latent instead of per-head keys and values. Against DeepSeek 67B, the DeepSeek-V2 paper reports a 93.3% smaller KV cache and 5.76 times the maximum generation throughput.
• Windows and chunks. Layers that do not need the whole context get a cap: gpt-oss uses a 128-token band on half its layers, Llama 4 an 8,192-token chunk on three quarters of them.
• Hybrid linear attention. Most layers keep a fixed-size state and only a minority attend fully: 16 of 64 in Qwen3.8-27B, 24 of 93 in Kimi K3. The Kimi Linear paper reports beating full MLA under the same training recipe while cutting KV cache use by up to 75% and decoding up to 6 times faster at a 1M context.
• Compressed and sparse attention. DeepSeek-V4 (April 2026) combines compressed sparse attention with heavily compressed attention; its model card says "DeepSeek-V4-Pro requires only 27% of single-token inference FLOPs and 10% of KV cache compared with DeepSeek-V3.2" at 1M tokens. V4.1-Flash (September 2026) keeps its main cache in FP4, E2M1 values with one E4M3 scale per 16 channels, and reaches 890 bytes per token.

DeepSeek's chart on the V4.1-Flash model card puts the trend in four points.

From V1 in November 2023 (389,120 bytes per token, a GQA design with 95 layers and 8 KV heads, close to Llama 3.3 70B's 327,680, the dashed line) to V4.1-Flash in September 2026 (890 bytes), the cache per token fell 437 times, in steps of 8.1x, 13.7x and 3.9x. The chart mixes architecture with precision, since V3.2 is counted with FP8 latents and V4.1-Flash with an FP4 cache, so read it as the cache DeepSeek ships, precision included.

The engine-side lever is precision. vLLM's kv_cache_dtype takes auto, fp8, fp8_e4m3 (CUDA 11.8 or later, and ROCm) or fp8_e5m2, and an FP8 cache halves every GQA and MLA row of the table in Section 6. Scales are per tensor, or per attention head with the Flash Attention backend and llm-compressor calibration. NVIDIA's research blog reports that an NVFP4 cache cuts the footprint by up to about 50% against FP8 with under 1% accuracy loss, and beats an MXFP4 cache by about 5%; these are NVIDIA's own results. Quantizing the weights leaves the cache untouched, since the two are separate settings. Chapter 3 compares the 4-bit weight formats, and The Ultimate Guide to Local LLMs covers quantization on smaller hardware.

The last lever moves cold blocks out of HBM. LMCache, plugged into vLLM, reports up to 15x throughput on multi-round question answering and document analysis. Mooncake, Kimi's serving platform, uses the cluster's CPU, DRAM and SSD resources as one cache pool and handled 75% more requests under real Kimi workloads. NVIDIA's Dynamo 1.0 KV Block Manager reaches S3 and Azure blob storage and can pin blocks in host memory instead of deleting them. Moving a cache costs bandwidth: an 8K-token prompt on a 70B model is 2.68 GB of BF16 cache, about 54 ms over 400 Gb/s RDMA and about 3 ms over NVLink, while DeepSeek-V3's MLA cache for the same prompt is 0.58 GB (the book's arithmetic).

Providers price the difference. DeepSeek's API charges $0.15 per million input tokens on a cache miss and $0.003 on a cache hit for V4.1-Flash off-peak, as of October 2026, a 50x gap, and Anthropic bills cache reads at 0.1x the base input price (0.05x on Claude Opus 5.5). An agent that resends 100K tokens of context every turn pays DeepSeek $0.015 per turn on a miss and $0.0003 on a hit.

What to do on Monday: pick the model you serve, or the one you expect to be asked about, run kv_calc.py on its config.json, and write down three numbers: bytes per token, GiB per sequence at your p95 context, and the sequences that fit on your GPU after weights and activations. Then compare the last number with your server's --max-num-seqs and with last week's peak of vllm:num_requests_running, and lower the cap if it sits far above what fits.
